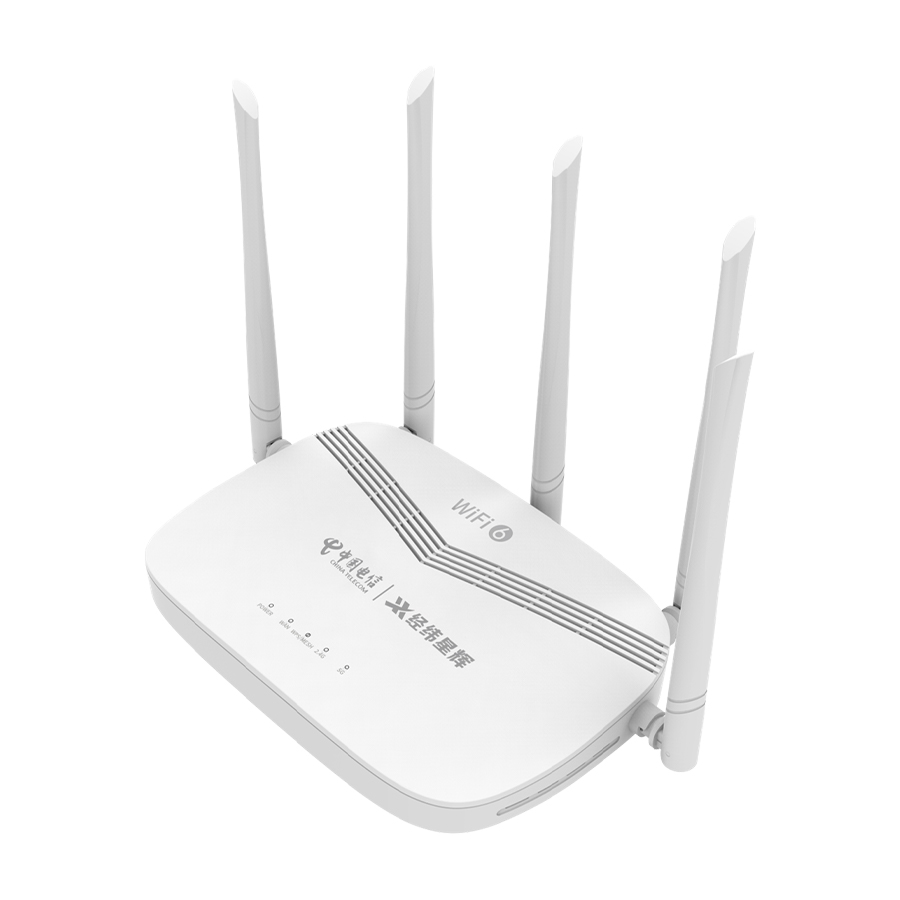

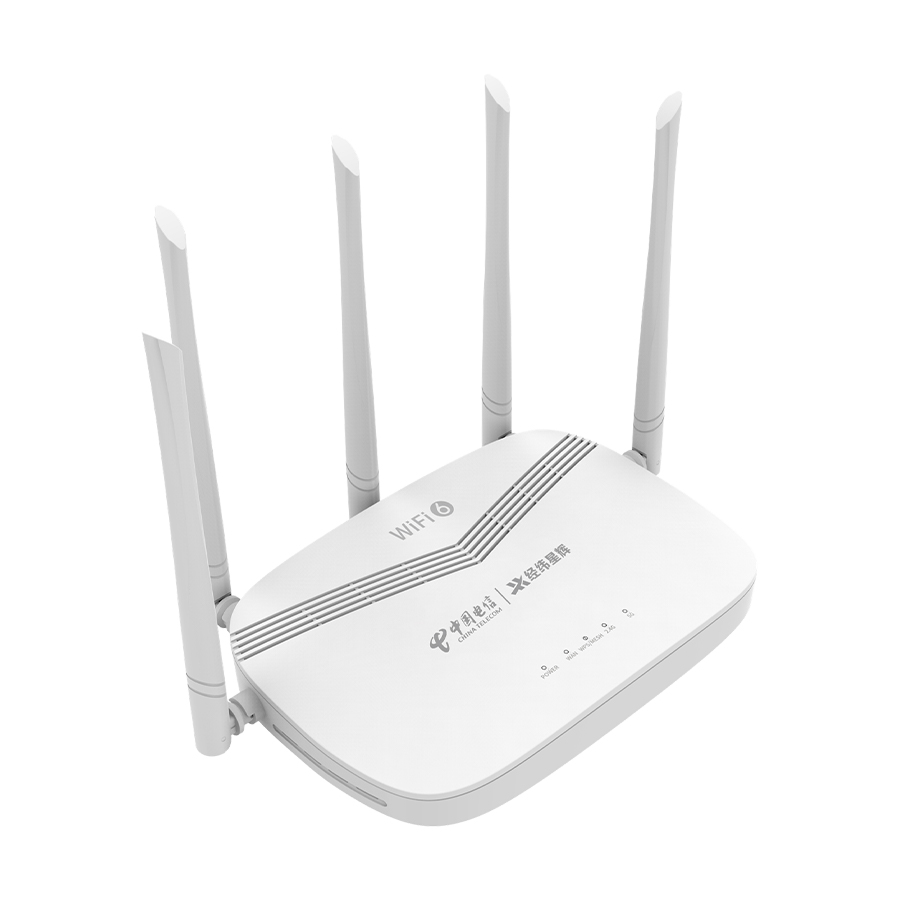

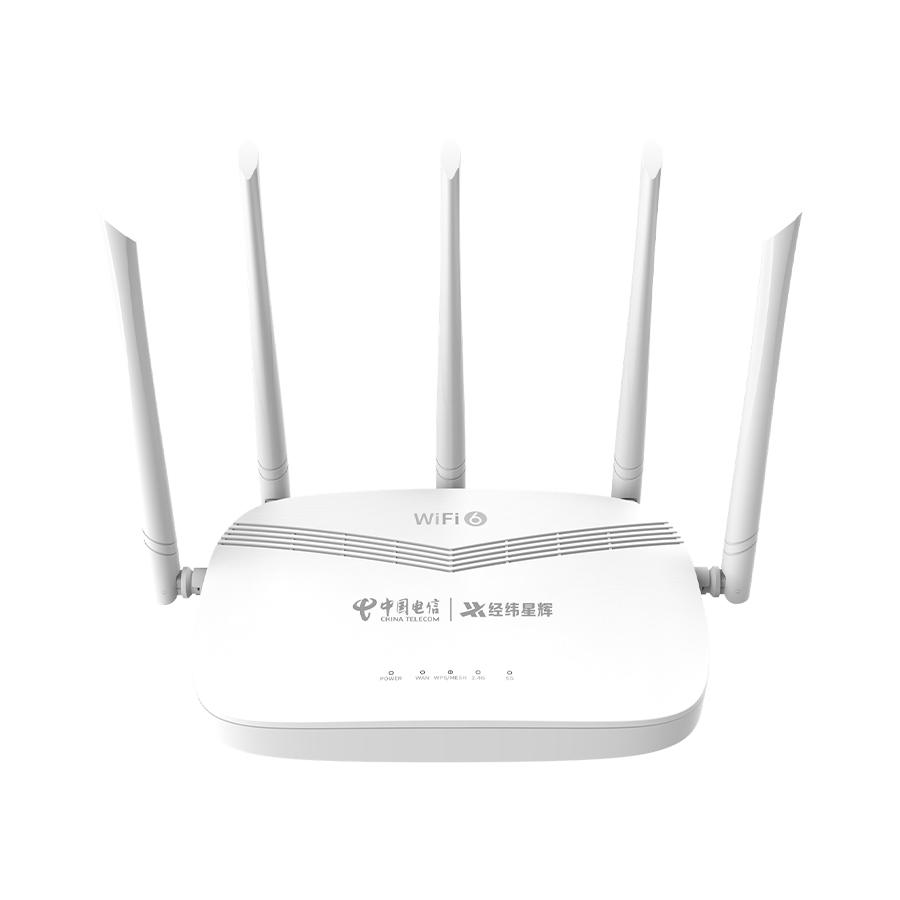

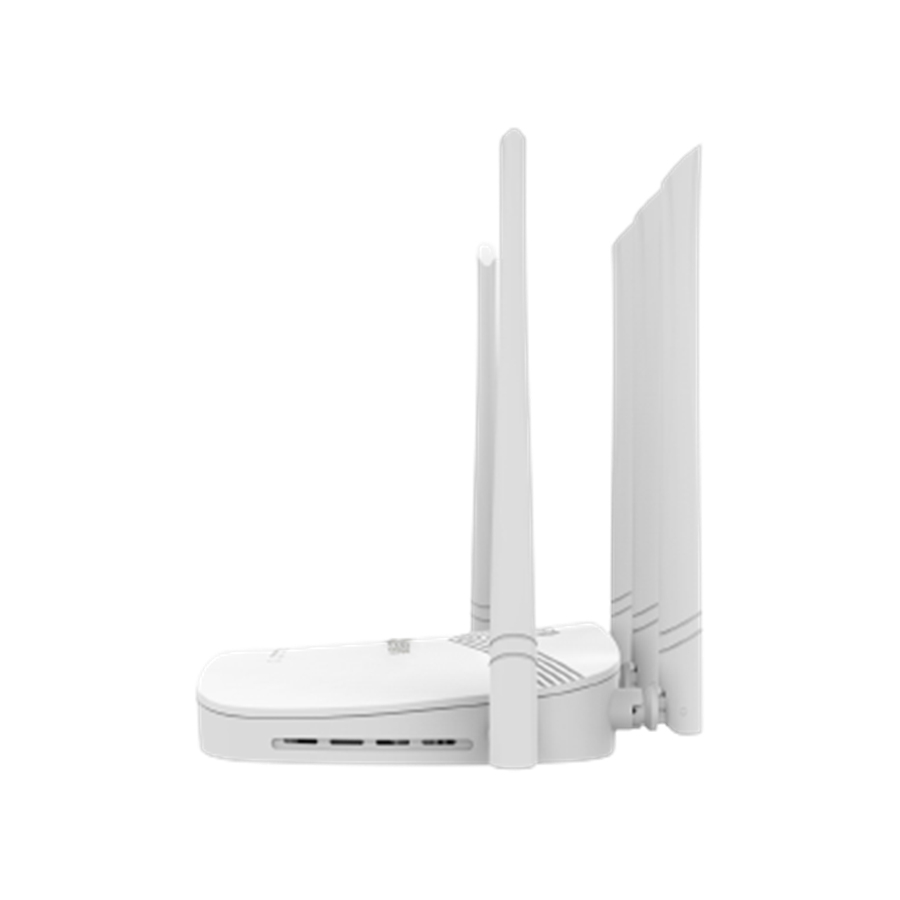

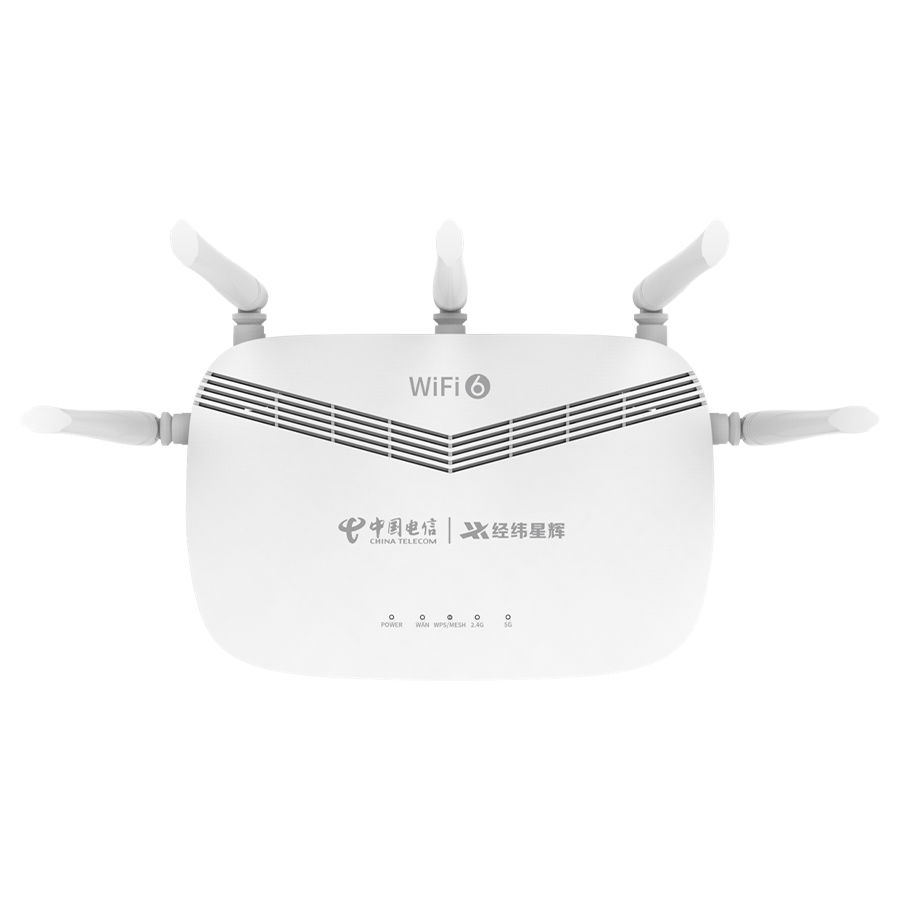

Jingwei Xinghui Gigabit Dual Band WiFi 6 Router JW30B (3000M)
| Main parameters | ||
| Web Standards | Standards for each band | IEEE 802.11ax/ac/a/n 5GHz |
| IEEE 802.11ax/b/g/n 2.4GHz | ||
| Network Band | Single/Dual Frequency | 2.4GHz & 5GHz |
| Wireless speed | Rate of each band | 5GHz: 2402Mbps |
| 2.4GHz: 574Mbps | ||
| CPU | Chip model | ?MT7981BA |
| Frequency | Dual Core 1.3 GHz | |
| Wifi Chip | Chip Manufacturer | MTK |
| Chip model | MT7976CN | |
| Storage | RAM | 256MB |
| Flash | 128MB | |
| Antenna | Quantity and size | 5 external single frequency 5dBi omnidirectional antennas |
| Network side interface | Number of GE interfaces | WAN×1GE |
| User side interface | Number of GE interfaces | LAN×3GE |
| Keys | name, quantity | 1 Reset button, 1 WPS/Mesh button |
| Power adapter | I/O Specifications | Input: AC100～240V—50～60Hz; Output: DC12V-1.0A |
| Product size | L/W/H | 210mm*144.4mm*34.5mm |
| Function parameters | ||
| ?Basic function | ?Support SSID broadcast and hiding, support MU-MIMO, signal strength regulation, support OFDMA、TWT object awakening technology, BSS coloring mechanism, support Beamforming | |
| Wireless encryption mode | ?Wpa-psk (TKIP), WPA2-PSK (AES) and WPA-PSK (TKIP) +WPA2-PSK (AES), etc | |
| ?MESH | ?Button shortcut networking and wireless configuration delivery | |
| ?Special function | ?WiFi timing switch, parental control, remote APP management, visitor network | |
| Environment Parameters | ||
| Operating temperature | 0℃~40℃ (32℉~104℉) | |
| Working humidity | 10%~90% (non-condensing) | |
