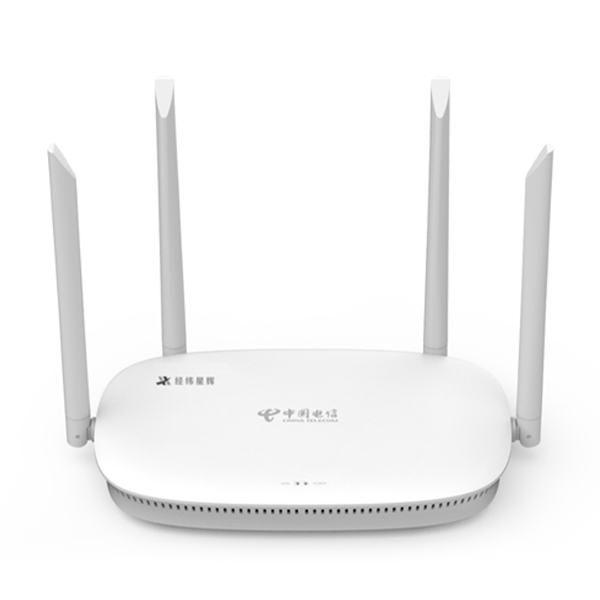

Jingwei Xinghui WiFi-6 Router JW10A (1800M)
| Main parameters | ||
| Web Standards | Standards for each band | IEEE 802.11ax/ac/a/n 5GHz |
| IEEE 802.11ax/b/g/n 2.4GHz | ||
| Network Band | Single/Dual Frequency | 2.4GHz & 5GHz |
| Wireless rate | Rate of each band | 5GHz: 1200Mbps |
| 2.4GHz: 574Mbps | ||
| CPU | Chip model | MT7621 |
| Frequency | Dual Core 880MHz | |
| Wifi Chip | Chip Manufacturer | MTK |
| Chip model | MT7975+ MT7905 | |
| Storage | RAM | 256MB |
| Flash | 128MB | |
| Antenna | Quantity and size | 4 external 5dBi omnidirectional antennas |
| Network side interface | Number of GE interfaces | WAN×1GE |
| User side interface | Number of GE interfaces | LAN×3GE |
| Keys | name, quantity | 1 Reset button |
| Power adapter | I/O Specifications | Input: AC100～240V—50～60Hz; Output: DC12V-1.0A |
| Product size | L/W/H | 215mm×138mm×34.5mm |
| Function parameters | ||
| Firewall | Support built-in firewall | |
| Qos | Support QOS speed limit | |
| WPS function | Support | |
| Internet Safety | Support | |
| Environment parameters | ||
| Operating temperature | 0℃~40℃ (32℉~104℉) | |
| Working humidity | 10%~90% (non-condensing) | |
