Wireless Dual Band WiFi-5 Router JW101(1200M)

Mobile: 13823162377
Contact: Mr Yang
Email: yangyong@zgpckj.com
Company address: Building 8, Comprehensive Bonded Zone, Bancang Industrial Park, Yantan District, Zigong City, Sichuan Province

The wireless transfer rate is 1200Mbps. The 2.4 GHz wireless rate is up to 300Mbps, and the 5GHz wireless rate is up to 867Mbps, meeting the needs of large houses and small offices to access the Internet.

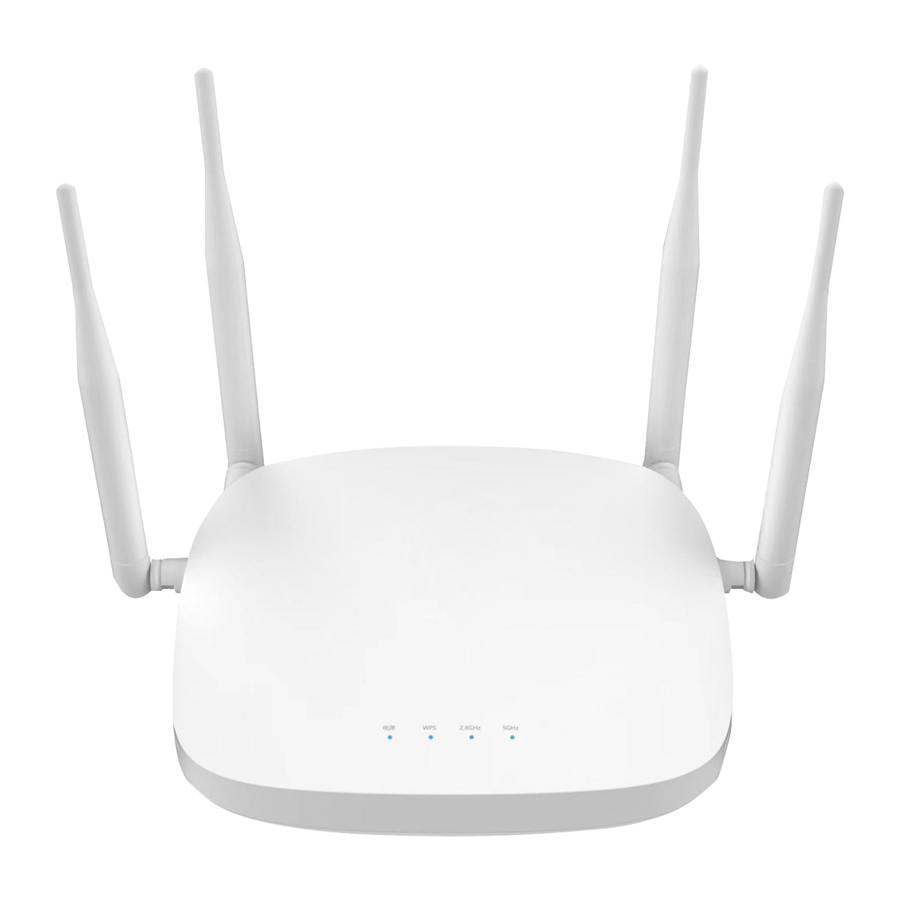

2.4G&5G dual-band preferred mode, with 4 external dual-band antennas, to avoid interference and make the video experience more enjoyable.
Use a high-performance, highly integrated RTL solution that supports 802.11ac WiFi technology.
Great compatibility. Compatible with mainstream smartphones, tablets, PCs, etc.
Built-in firewall, support filtering IP address, MAC address, domain name, etc.
Enhanced heat dissipation design simplifies the basic setup of the router, suitable for home use.

Main parameters
Web Standards	Standards for each frequency band	IEEE 802.3, 802.3u, 802.11b/g/n/ac
Network Band	Single/Dual Frequency	2.4GHz & 5GHz
Wireless speed	Rate of each band	5G: 867Mbps
Wireless speed	Rate of each band	2.4G: 300Mbps
CPU	Chip model	MT7621
CPU	Frequency	Dual Core 880MHz
Wifi Chip	Chip Manufacturer	MTK
Wifi Chip	Chip model	MT7603+MT7613
Storage	RAM	256MB
Storage	Flash	128MB
Antenna	Quantity and size	4 external 5dBi antennas: 2×5dBi 2.4G, 2×5dBi 5.8G
Network side interface	Number of GE interfaces	WAN×1GE
User side interface	Number of GE interfaces	LAN×3GE
Keys	name, quantity	1WPS/RESET button, 1Power button
Power adapter	I/O Specifications	Input: AC100～240V—50～60Hz; Output: DC 12V-1.0A
Product size	L/W/H	180mm×139mm×35mm
Function parameters
Firewall		Built-in firewall, filtering IP address, MAC address, domain name, port forwarding, etc.
Qos		Bandwidth control based on IPv4/IPv6/MAC/phyport/dscp
WPS function		Support one-click WPS
Internet Safety		Support
Environment parameters
Operating temperature		-5℃~40℃ (32℉~104℉)
Working humidity		10%~95% (non-condensing)
